side outlet-A4 no flange series

Product Details


-Manufactured from real stainless steel 304 or 316, 100% new material, Ni%>8%

-high corrosion resistance and uniform appearance

-against stench, removable siphon made of hard plastic, easy to clean

-laser welding and leak test every product, guarantee 100% no leakage

-10 years warranty


-any available length from 300 to 2400mm.

-base with 20mm flange each side, installation width 70mm.

-Min installation height 105mm, adjustable installation height range 0~25mm.

-Outlet diameter 40mm, adapter for 50mm.

-Flow capacity 35L/min, European standard En 1253-2, CE certificated.

-Easy to install,

-sloped channel body, water flow smoothly

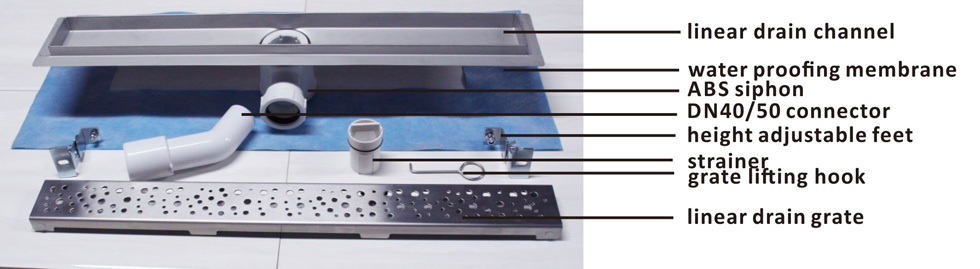

Each set include:

1 pcs* linear drain body

1 pcs* linear drain grate

1 pcs* deodorant siphon

2 pcs* leveling adjustable feet

1 pcs* DN40/50 connector

1 pcs* grate lifting hook

1 pcs* installation guide

1 pcs * waterproofing membrane

Grate choice:


Accessories choice:
